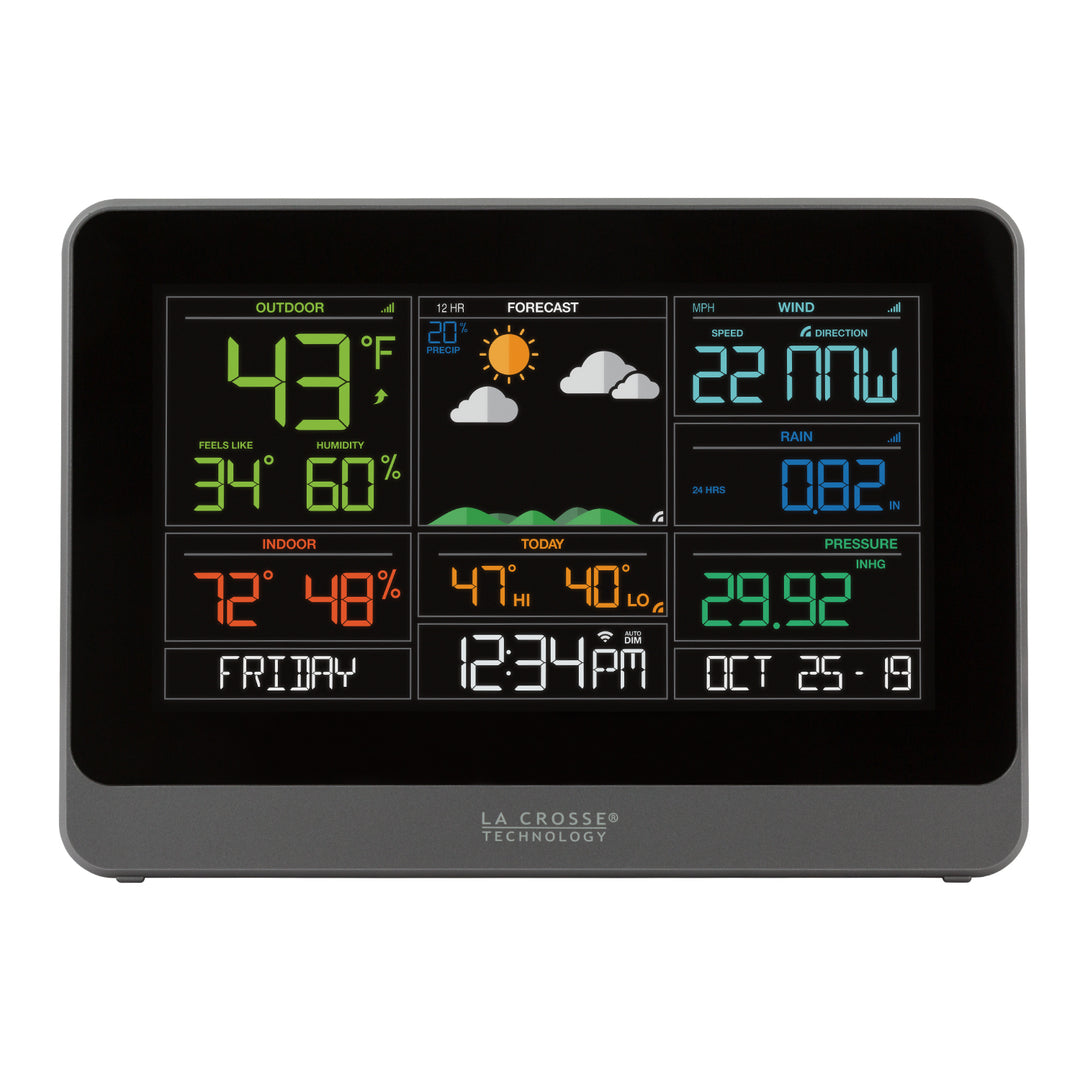

c83100 headon

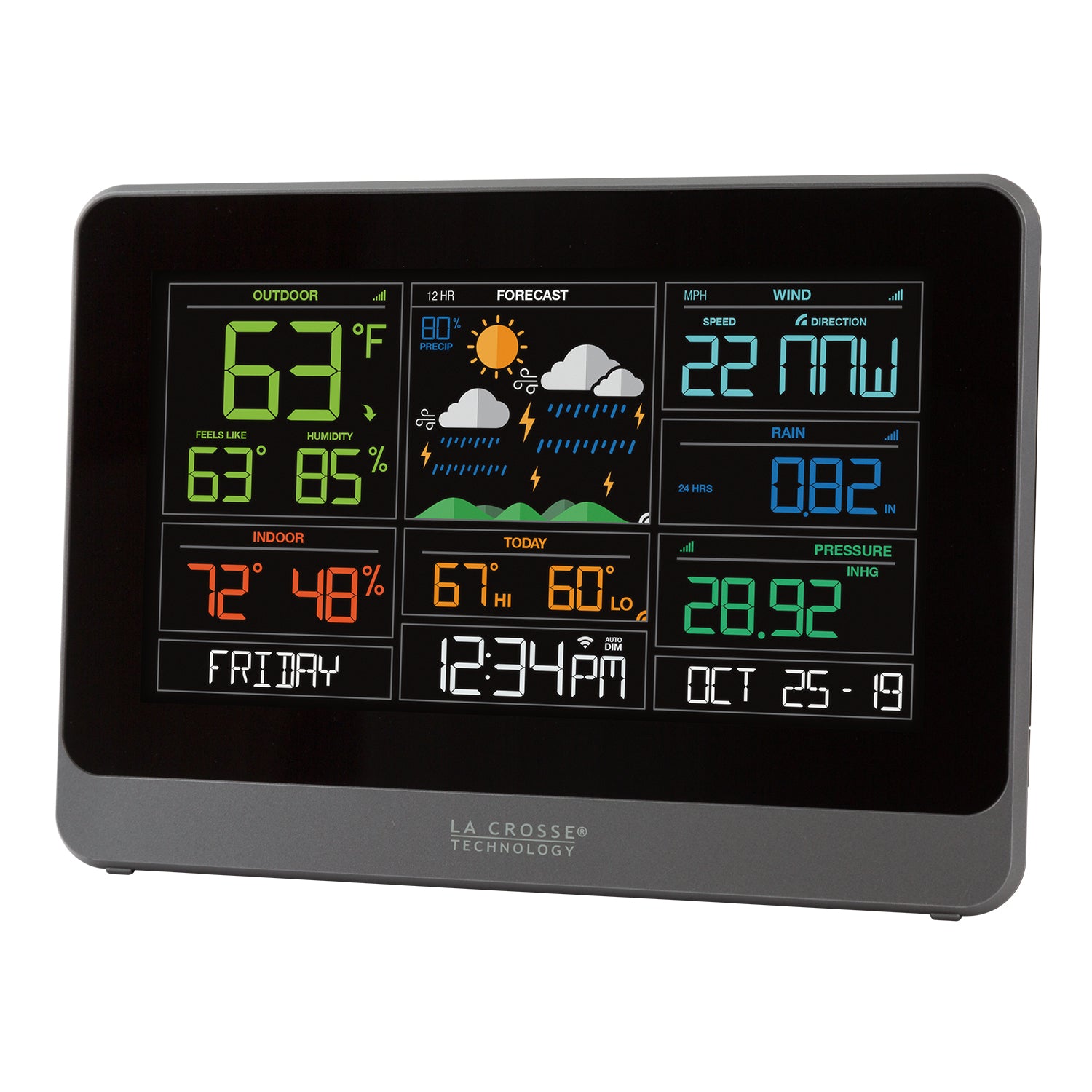

c83100 left

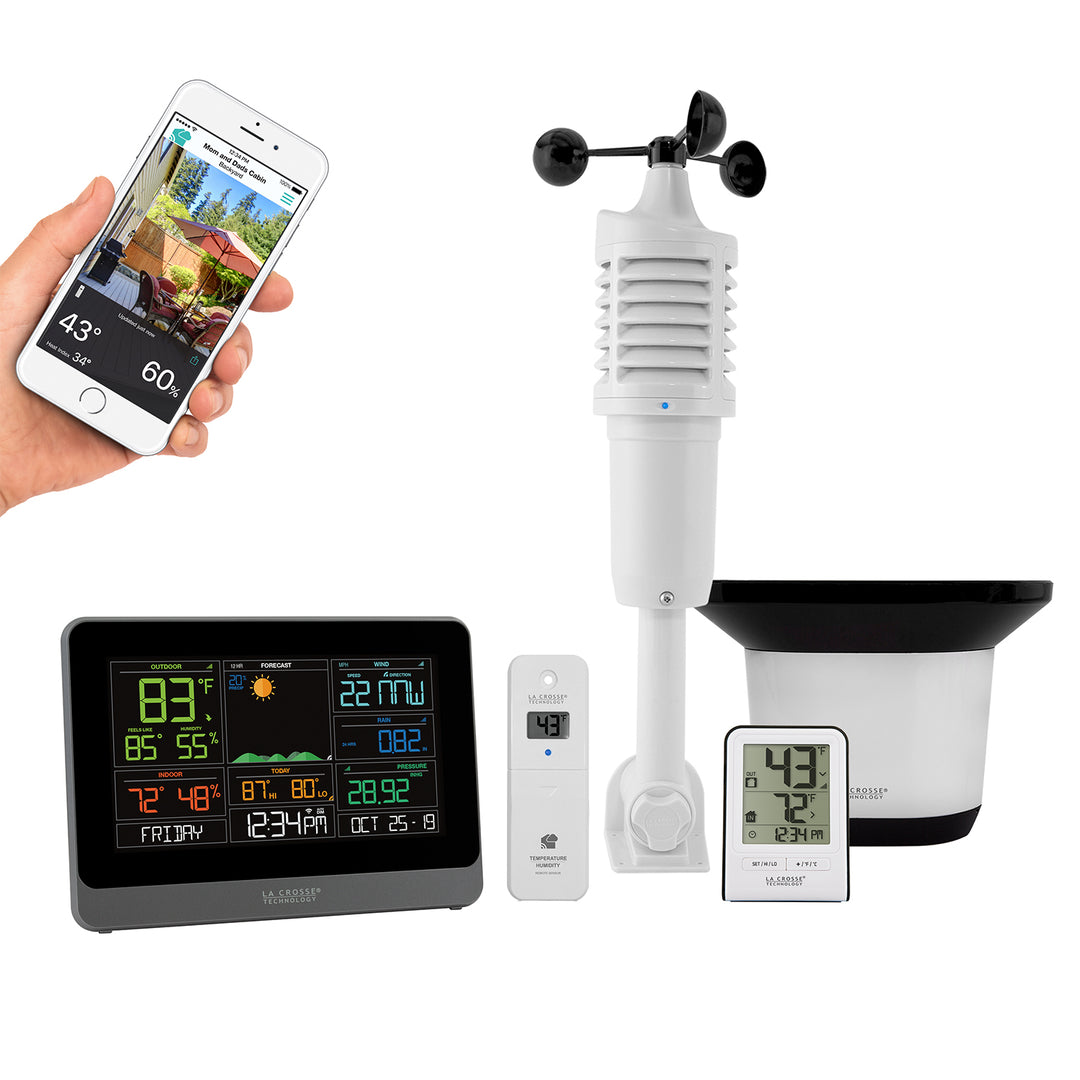

c83100 heroimage

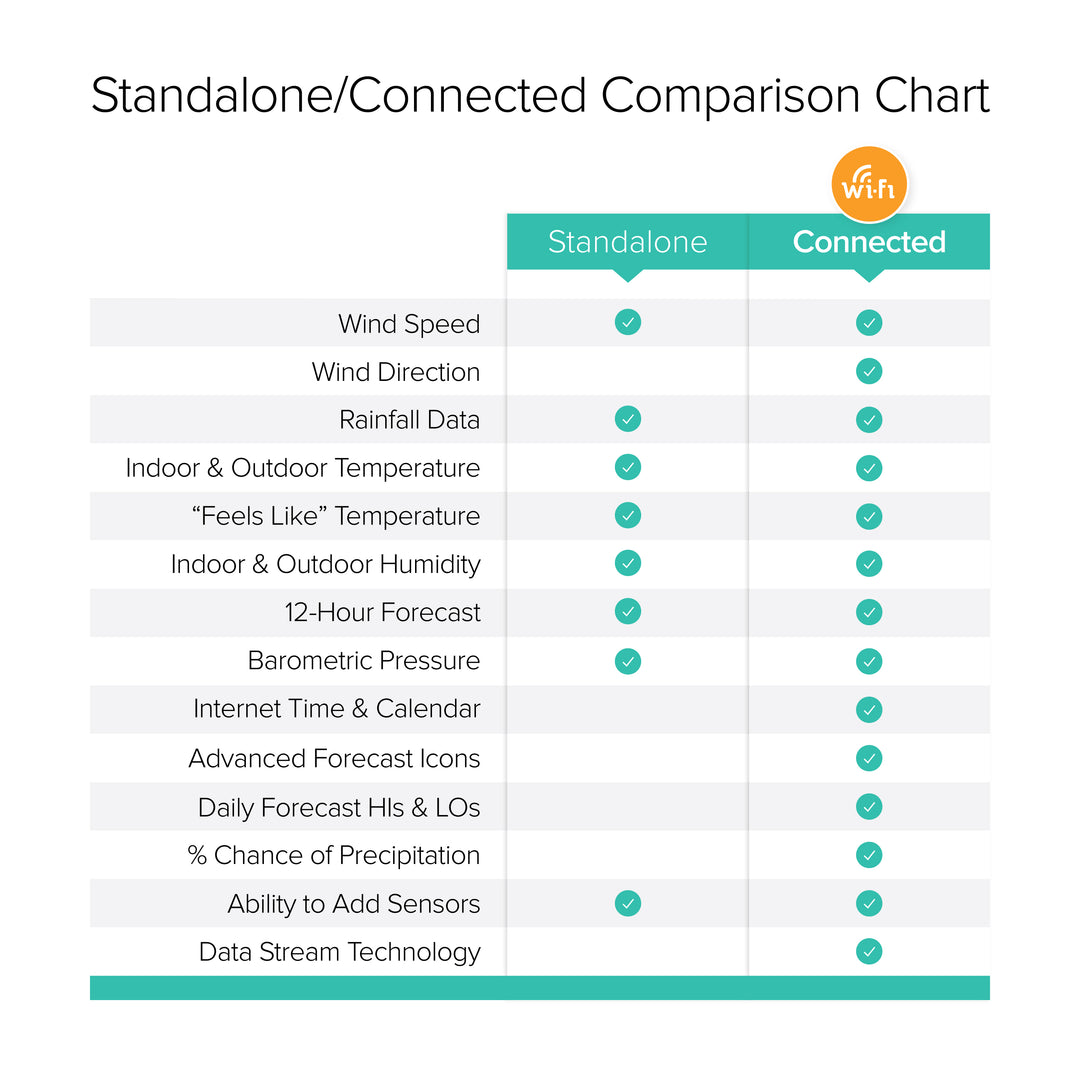

c83100 table 1

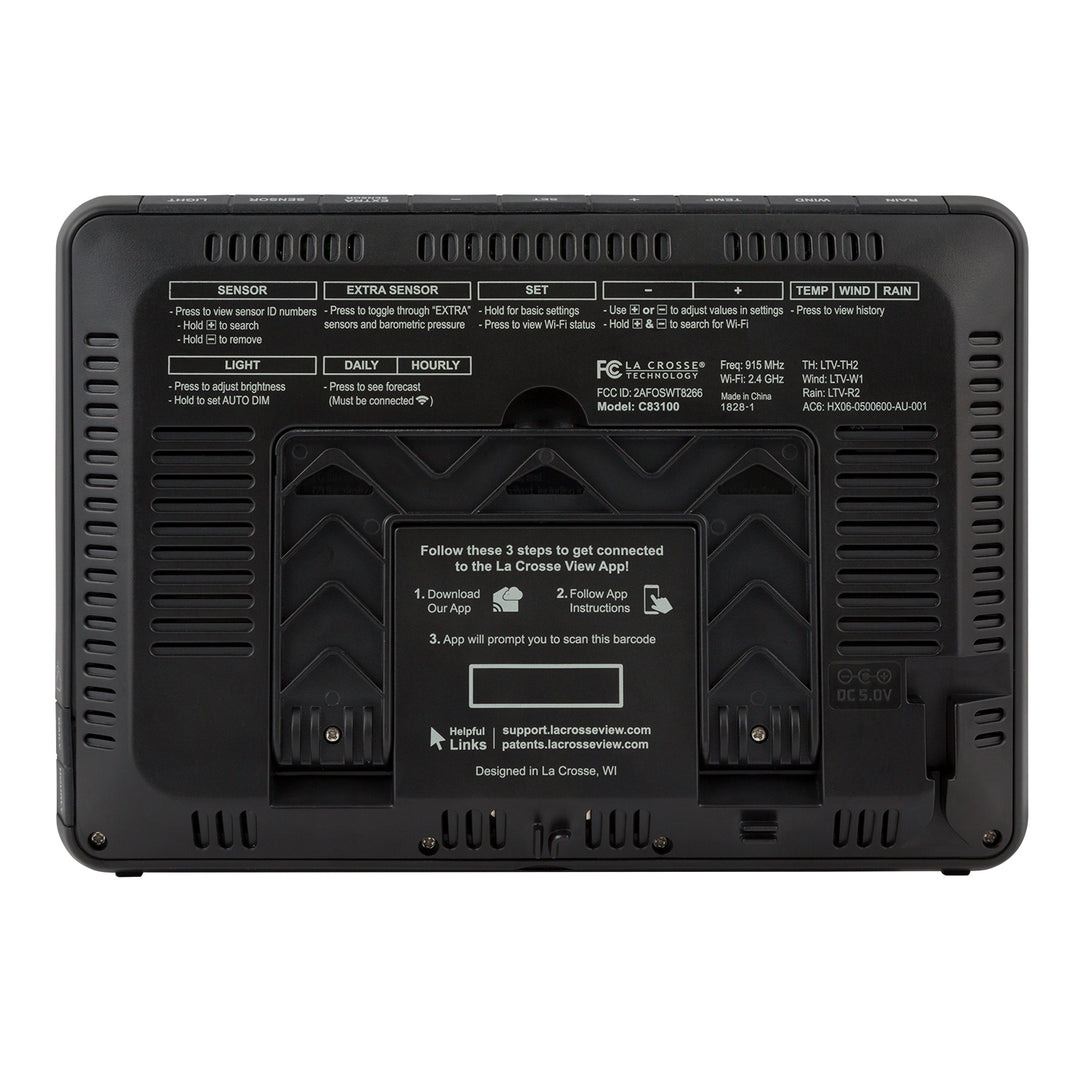

c83100 back

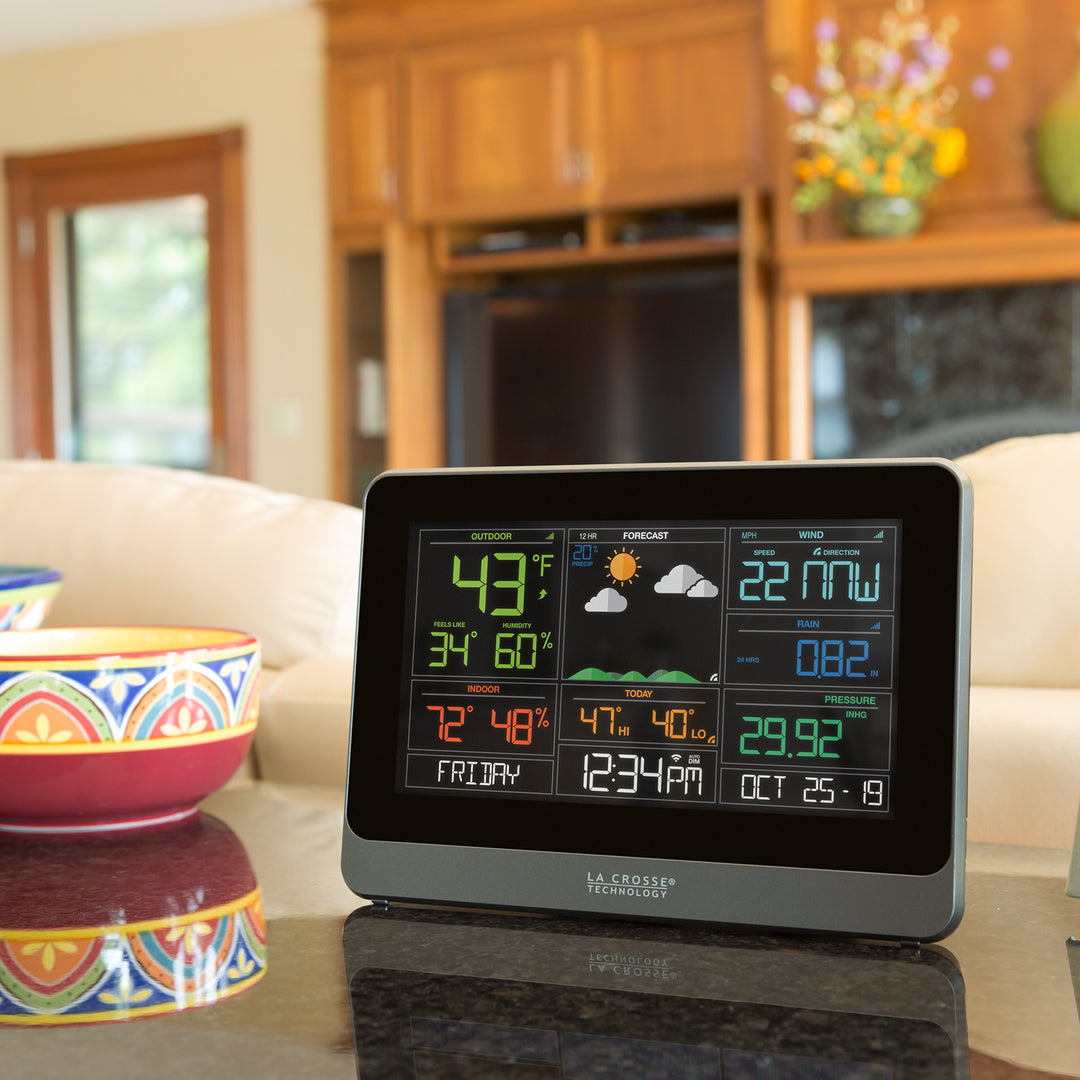

c83100 lifestyle1

C83100 Complete Personal Wi-Fi Weather Station

SKU: C83100

Retired

Our new Remote Monitoring Weather Station features wind, rain, indoor and outdoor temperature and humidity data, daily high and low temperature records, dynamic forecast icons, and a new Wi-Fi connected option, which will allow you to see all of your sensor data in our new La Crosse View app.

Already own this product?

Browse the tabs below for compatible parts, manuals or support.

Features

Weather Station Features

Temperature/Humidity (°F or °C)

  • Indoor/Outdoor Readings
  • Outdoor Temperature Trend Indicators
  • Feels Like Temperature, Heat Index and Dew Point
  • HI/LO Records with Time/Date Stamp

Dynamic Color Weather Forecast

  • 6 Dynamic Forecast Icons

Wind Speed Data

  • Current and Hourly Top Speed
  • History Records with Time Stamp

Rain Fall Data

  • Selectable rainfall time frame (NOW, 1 Hour, 24 Hour, 7 Days, 1 Month, 1 Year, Total)
  • History Records

Time and Date

  • 12/24 Hour Setting
  • Displays Day of the Week, Month, Date & Year

Relative Pressure

  • Relative Barometric Pressure

Additional Features

  • Low battery indicators for station and sensors
  • 5 Settings LCD Brightness with Programmable Auto-Dim
  • Sensor Connection Indicator
  • Wifi Connection Indicator
  • Bonus Indoor Temperature Display
  • Wall Hanging or Adjustable Kickstand for Free Standing Option
  • Compatible with Add-om sensors

WiFi Connectable

Your weather station can function as a standalone weather station OR you can download the free La Crosse View™ App for enhanced features.

Why go Connected?

  • Anywhere Monitoring of Station and Sensor Information via the La Crosse View™ App
  • View and Track History with Detailed Graphs
  • Customize Alerts and Receive Push Notifications of Values Outside of Your Desired Range
  • Share Your Weather Information

Enhanced Station Features When Connected*

  • AccuWeather Weather Service
  • 6 Additional Forecast icons
  • 7 Days of Forecast
  • Hourly and Daily forecast
  • Temperature forecast
  • Chance of precipitation
  • Wind Direction
  • Daily Forcasted High and Lows
  • Time and Date automatically update
  • View Data Stream (VDS) Technology




Build your system to monitor what matters to you with additional sensors for your La Crosse View™ App

The C83100 station can display data from one Temperature & Humidity (TH) sensor, one Wind Sensor and one Rain Sensor. Add-on sensor data will either pass through to the La Crosse View App and/or appear in the extra sensor area in place of pressure. Check out the View Sensor compatibility chart for full details.



Looking to Add-on and expand the capability of your system? Check out the enhancement opportunities here.





Specs

Specifications:

Display

  • C83100 Indoor temperature range:  +32°F to +99°F (0°C to 37°C)
  • C83100 Relative Pressure: 23.62 to 32.48 InHg (800 to 1100 hPa)

  • C83100 and LTV-D1 Indoor humidity range: 10% RH to 99 %RH
  • LTV-D1 Indoor tempeature range: +32°F to +122°F (0°C to 50°C)

Included LTV-TH2 Wireless Outdoor Temp/Humidity Sensor

  • Outdoor temperature range: -40°F to 140°F (-40°C to 60°C)
  • Outdoor humidity range: 10% RH to 99%RH
  • Transmission range: Up to 400 feet (121 meters) in open air
  • Transmission frequency: 915 MHz

Included LTV-W1 Wind Sensor

  • Wind Speed Range: 0-111 mph (0-178 kmh)
  • Up to 400 feet (121 meters) in open air,  RF 915 MHz

Included LTV-R2 Rain Sensor

  • Rainfall Range: 0-393.6 inches ( 0-9999 mm)
  • Up to 400 feet (121 meters) in open air,  RF 915 MHz

    Power Requirements:

    • C83100 Display: 5.0 Volt power cord included (Required) AC6: XH0500-600W (Input 100-240V) CR2032 battery included, backup for time and date
    • LTV-D1 Display: 2 "AAA" Alkaline batteries
    • LTV-TH2 Sensor: 2 "AA" Alkaline batteries
    • LTV-W1 Sensor: 2 "C" Alkaline batteries
    • LTV-R2 Sensor: 2 "AA" Alkaline batteries

    Dimensions:


    • C83100 Display: 8.22" L x 1.18" W x 5.83" H
    • LTV-D1 Display:  2.64” W x 1.32” D x 3.62” H
    • LTV-TH2: 1.97" L x 0.75" W x 5.73" H
    • LTV-W1: 7.10" L x 7.10" W x 18.57" H (with mounting bracket/pole)
    • For custom mounting of LTV-W1 Sensor use 1” Electric Metallic Tube (EMT) Conduit
    • LTV-R2: 7.16" L x 4.76" W x 4.94" H

    Sensor Update Intervals:


    • LTV-TH2: Change of Temp +/- 0.5°C (0.9°F), Hum +/- 2% RH or 3 minutes if no change Checks Temp/Humidity every 51 seconds
    • LTV-W1: Change of 0.8km (0.5mph) Wind Speed or 3 minutes if no change. Checks for change in Wind Speed every 31 seconds, samples every 3 seconds
    • LTV-R2: Change of 0.2mm (0.008 in) Rainfall - 3 minutes if no change. Checks Rain every 45 seconds




    U.S. Patent Nos. 8,154,398, 8,339,901, 8,558,687, 9,140,583, 9,528,861, 10,234,597, 10,237,358, 10,539,713, 10,591,642, 10,594,807, 10,861,319, 11,005,953, 11,363,107, 11,379,101. Other patents pending.

Parts/Sensors

Register/Warranty

La Crosse Technology, Ltd. provides, to the original purchaser, a 1-year limited time warranty on this product, relating to manufacturing defects in materials & workmanship.  In accordance with the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.  The item will be either repaired or replaced at La Crosse Technology's discretion.

Click Here for full warranty details

Use the registration form below to register ownership of your product only.  If you have a question about use of the unit, please click on the support tab next to this one to see available support material or submit a ticket.

Support

Click HERE for our full Troubleshooting Guides, including App and WiFi setup and support.

Click on the video to play the La Crosse View station set-up playlist.
